Lift and
Rotators
PEM offers multiple types of Lift and Rotators to fit your packaging needs, including smaller diameter Air Lift & Rotators that are quicker and operate on a cantiliever system, to larger diameter Hydraulic Lift and Rotators that lift pipe straight up vertically, and operate at slower speeds. Our Lift and Rotators provide solutions for your every day packaging needs, offer you flexibility, and allow for less operator intervention at the end of the
PVC production process.
Types of Lift
and Rotators
2

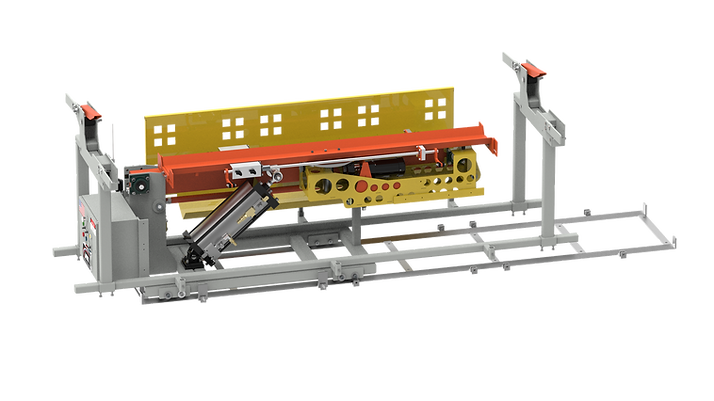

Air-Powered Lift and Rotator
Rotating Pipe
Effectively
Small diameter packaging solution
Air-Powered Lift and Rotators lift pipe to a designated height by use of a air cylinder in a cantilever motion, then rotate the pipe end for end to alternate the belled ends of the pipe for packaging purposes. Operation is completely automatic, and also includes a "Transfer Only" feature for moving pipes through the system without rotation. For Double Bellers producing two pipes per cycle, Rotators are available that lift two pipes at a time to keep up with line rates.
A well built Air Lift & Rotator quickly lifts the PVC Pipe in a cantilever motion approximately 66 inches high, and then rotates 180° to alternate the direction of the bell for packaging as needed.
Hydraulic-Powered Lift and Rotator
Heavier Pipe
Lifting Simplified
Larger Diameter
Packaging Solution
Hydraulic-Powered Lift and Rotators lift pipe to a designated height by use of a hydraulic cylinder with double scissor lift in a straight upward motion, then rotate the pipe end for end to alternate the belled ends of the pipe for packaging purposes. Operation is completely automatic if purchased with PLC control, or can be integrated into an existing machine as needed.
A well designed Hydraulic Lift & Rotator lifts the PVC Pipe approximately 7 feet high, and then rotates 180° to alternate the direction of the bell for packaging as needed.
